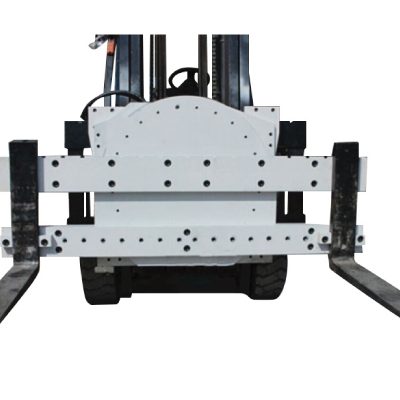

Mga Tampok
Hydraulic system: hydraulic motor and foreign companies jointly developed by a new generation of products; rotating hinge and seal oil are imported products. Rotating two-way hydraulic oil circuit, self-locking, ensuring safety at work.

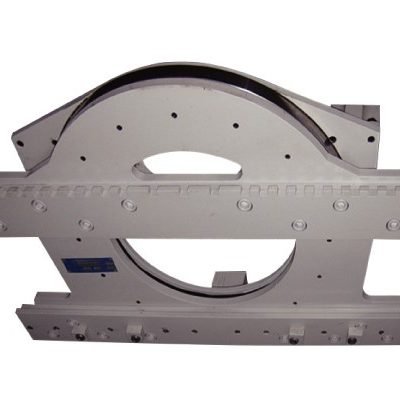

Structural parts: the slewing bearing slewing bearings with large modulus, the load capacity; worm and worm involute tooth profile, can improve efficiency, reduce heat loss, but also to achieve self-locking feature.
Mechanical performance: the case can be achieved with a 360 ° two-way rotation, a group of asphalt can be added to meet the requirements; standard fork can be used directly without modification.
Mga kalamangan
1. Proven durable construction design, unique rotating driven system, meet the high strength continuous operation.
2.Strong rotating driving torque achieved the stable and reliable rotating function.
3.Hydraulic motor fixed with reversible hydraulic lock, any angle position of lock function.
Mga Video
Pagtutukoy
Catalogue Order No. | Capacity @ Load Center | Klase ng Pag-mount ng Truck / Rotator | Rotator / Forks Pag-mount sa Klase | Lapad ng Karwahe (mm) | Fork Max Spacing (mm) | Fork Min Spacing (mm) | Pangkalahatang lapad (mm) | Timbang (kg) |
RRB20D-001A | 1700@500 | II | II | 815 | 705 | 610 | 840 | 188 |
RRB20D-002A | 1600@500 | II | II | 815 | 705 | 610 | 840 | 254 |
RRB20D-003A | 1600@500 | II | II | 815 | 705 | 610 | 840 | 259 |
RRB20D-004A | 1600@500 | II | II | 815 | 705 | 610 | 840 | 268 |
RRB20D-005A | 1600@500 | II | II | 815 | 705 | 610 | 840 | 277 |
RRB20D-006A | 2200@500 | II | II | 815 | 705 | 813 | 840 | 300 |
RRB20D-007A | 2200@500 | II | II | 940 | 835 | 813 | 965 | 309 |
RRB30D-008A | 3000@500 | II | II | 940 | 855 | 813 | 965 | 313 |
RRB30D-008B | 3000@500 | III | II | 940 | 855 | 813 | 965 | 329 |
RRB30D-009A | 3000@500 | II | II | 1145 | 1060 | 813 | 1170 | 327 |
RRB30D-009B | 3000@500 | III | II | 1145 | 1060 | 813 | 1170 | 343 |
RRB35D-010B | 3500@500 | III | III | 1065 | 990 | 813 | 1090 | 390 |
RRB35D-011B | 3500@500 | III | III | 1220 | 1140 | 813 | 1245 | 406 |
Tandaan
Makuha ang aktwal na kapasidad ng forklift at mga attachment mula sa tagagawa ng forklift,
One sets additional oil circuit required on forklift
According to user needs to increase forks. Please note the fork's capacity.
The actual mount ,please according to the fork width adjustment positioning block, choose one mating surface, preventing load rotates, fork on the upper and lower cross beam under moving.
Mangyaring makipag-ugnay sa mga benta mula sa HUAMAI
Hydraulic Flow & Pressure
Model | Min.Hydraulic Flow (L / min) | Pinagbigyan ni Rec. Hydraulic Flow (L / min) | Max.Hydraulic Flow (L / min) | Pinagbigyan ni Rec. Hydraulic Pressure (Bar) | Max. Hydraulic Pressure (Bar) |
RRB20D | 20 | 40 | 60 | 35 | 160 |
RRB30D | 20 | 40 | 60 | 35 | 160 |
RRB35D | 20 | 40 | 60 | 35 | 160 |
RRB35D | 20 | 40 | 60 | 35 | 160 |
Pagtutukoy ng Rotator
Model | Bilis ng Rotator | Rotator Torque |
RRB20D | 7.0r/min@57L/min | 7200N.M@160Bar |
RRB30D | 5.2r/min@57L/min | 9000N.M@160Bar |
RRB35D | 5.2r/min@57L/min | 9000N.M@160Bar |
RRB35D | 5.2r/min@57L/min | 9000N.M@160Bar |
Mga Pagpipilian
Mga tinidor
180 degrees rotator
Welding type of hook
Application
Rotator widely used in food, automation, chemical, materials recycling, smelting foundry industries, as well as any need to rotate the hopper or box tipping and mixing occasions, the goods can quickly flip or conversion, and then immediately coherent the fork back to its original location.
Mabilis na Mga Detalye
Lugar ng Pinagmulan: Fujian, China (Mainland)
Pangalan ng Tatak: HUAMAI
Model Number: RRB20D-001A
Product Name: Rotating forklift attachment
Type: RRB20D-001A
Truck/Rotator Mounting Class: II
Carriage Width (mm): 815mm
Fork Max Spacing (mm): 705mm
Fork Min Spacing (mm): 610mm
Overall Height (mm): 840mm
Weight (kg): 188mm
Usage: Food, automation, chemical, materials recycling
